Coatings & Thin Films

Coatings and thin films are designed and developed to establish or alter various surface characteristics and in many cases the relationship between structure, morphology, and material properties is indispensable for the optimization of the material design. WITec imaging systems are particularly well-suited to contribute to the analysis of multi-component coating systems and thin films by visualizing the distribution of individual chemical components and the physical properties of different material components.

For investigating coatings and thin films the depth resolution of the imaging systems is of enormous importance in discriminating thin layers in the z-direction. Due to depth resolution being highly dependent on the confocality of the microscope, WITec imaging systems are designed specifically to provide exceptional confocal imaging performance in depth scans.

WITec’s highly versatile instruments can combine various imaging techniques to significantly increase the insights provided by measurement results. Possible combinations which can be included in a single microscope setup include confocal Raman imaging, Atomic Force Microscopy (AFM), Nearfield-Microscopy (SNOM) and Scanning Electron Microscopy (SEM). Confocal Raman imaging provides chemical information, AFM detects topography, structure, and physical properties such as stiffness, adhesion, etc. of the sample’s surface, and SNOM high-resolution measurements can optically reach beyond the diffraction limit. All WITec instrument configurations can be upgraded at any point to adapt the system to new or extended requirements.

WITec Raman Depth Profile Coating

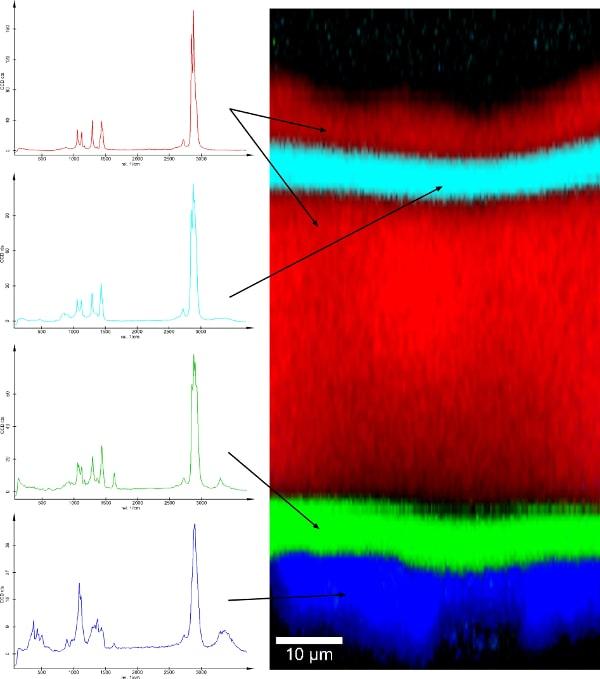

Raman depth-profile of a inner multi-layer coating of an juice container.

Application Examples

WITec Raman Oil Coating Syringe

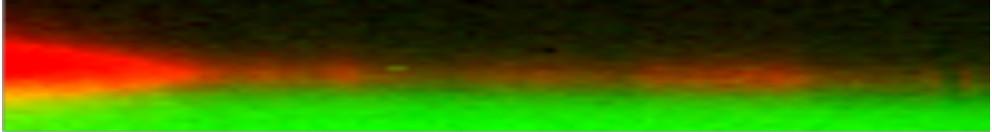

Raman depth-profile in z-direction of an oil coating (in Red) on the inner surface of a glass syringe.
WITec Topographic Raman Food Coating

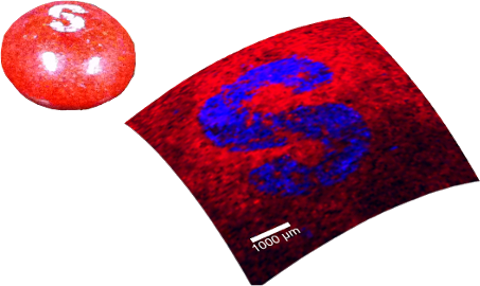

Topographic Raman image of food coating.
WITec Raman Polymer Glass Coating

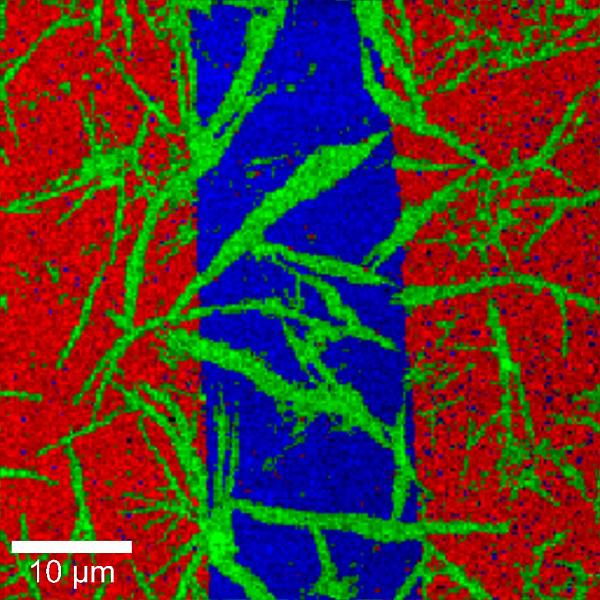

Ultrafast Raman image of a 7.1 nm thick PMMA film (red) on glass (blue) with a 4.2 nm thick alkane contamination layer (green) on top.


Application Note Correlative Raman Imaging in Polymer Research


If you'd like to learn more about the possibilities of Raman imaging for your individual field of application, one of our specialists will be happy to discuss them with you.
