alpha300 R<i>i</i> – Inverted Raman imaging microscope by WITec

Experience Raman Imaging from a new angle.

The alpha300 Ri turns 3D chemical characterization upside down. Its inverted beam path preserves all the functionality of WITec’s standard alpha300 confocal Raman imaging microscopes while introducing a new angle in access and handling. The ability to view and investigate samples from below is a great advantage when working with aqueous solutions and oversized samples. Studies in life sciences, biomedicine and geosciences in particular will benefit from the consistency and flexibility provided by the geometry of the alpha300 Ri.

Request Pricing Add to quote list View this product on your quote list

Key Features

An inverted beam path allows liquid samples to be placed on the fixed plane of the stage for quick and repeatable measurements.
The motorized sample stage also facilitates the mounting of environmental enclosures and other accessories.
Bulky samples that would be challenging to investigate underneath a conventional microscope objective turret can be accommodated by placing them on the stage of the alpha300 Ri.
Compatible with other microscopy techniques including: fluorescence, differential interference contrast (DIC) and phase-contrast
Features all the unique and established imaging and spectroscopy capabilities of the WITec alpha300 R series.
Non-destructive imaging technique: no staining or fixing of the sample required

Application Examples

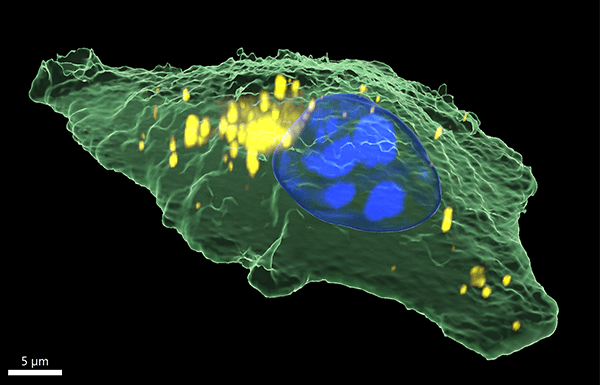

Correlative Raman-Fluorescence microscopy image of DAPI-marked eukaryotic cell nuclei

Correlative Raman Fluorescence Microscopy. Left: Nuclei labeled with DAPI. Right: Nucleoli (green) and endoplasmic reticulum (red) are identified by their Raman spectra. The Raman and fluorescence images are overlaid.

3D Raman image of pressed banana pulp

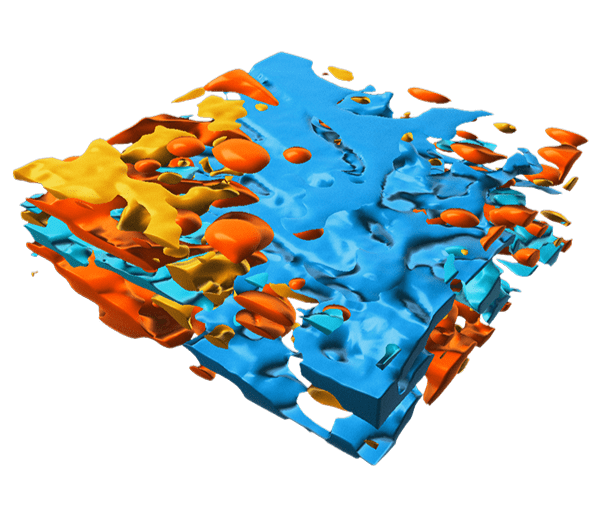

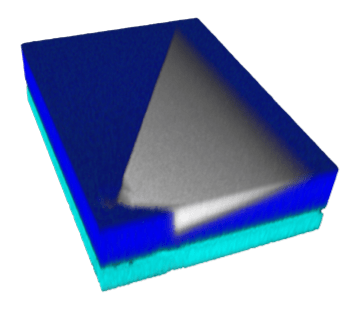

The alpha300 Ri combines the advantages of data acquisition from below with the established merits of 3D confocal Raman imaging which is a powerful and versatile technique that can chemically characterize samples nondestructively and without labeling or other specialized preparation.

The image shows a 3D reconstruction of Raman image stacks of pressed banana pulp, with starch grains in green and cell wall components in red. (Scan range: 300µm x 200µm x 90µm, number of pixels: 450x300x45)

Specifications

Raman General Operation Modes

Raman spectral imaging: Acquisition of complete hyperspectral Raman imaging data sets while continuously scanning.
Planar (x-y-direction) and depth scans (z-direction) with motorized sample positioning
Image stacks: 3D confocal Raman imaging
Fast and slow time series
Single point Raman spectrum acquisition and depth profiling
Fibre-coupled UHTS spectrometers specifically designed for Raman microscopy and applications with low light intensities
Confocal Fluorescence Microscopy

Basic Microscope Features

Research grade inverted optical microscope with 6x objective turret
Video system: Video CCD camera and/or fluorescence camera
LED white-light source for Köhler illumination
Binocular
Condensor lens for up to 7 contrasts (e. g. brightfield, DIC, Phase contrast, NAMC, etc.)
Sample holder accommodating various standard sample formats (e. g. microscopy slides, Terasakiplates, 35/65 mm dishes, Nunc flasks, counting chambers)
Internal filter block revolver
Motorized sample positioning and scanning stage in x- and y-direction, large travel range

Raman Optional/Upgradable Operation modes

A broad range of lasers and wavelengths (from UV to IR) eligible
Additional UHTS spectrometers (UV, VIS, NIR)
Ultrafast Raman imaging optional available
Upgradable for time correlated single photon counting / fluorescence lifetime imaging (FLIM)
Autofocus

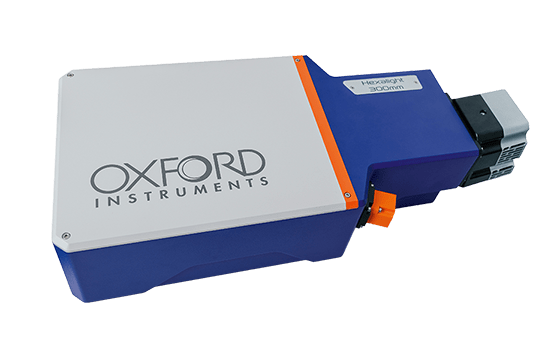

Ultrahigh-throughput WITec UHTS Spectrometers

Various lens-based, excitation optimized spectrometers (UV, VIS or NIR) available, all specifically designed for Raman microscopy and applications with low light intensities
Fibre-coupled ultrahigh-throughput optical instruments
Superior peak shape conservation

Computer Interface:

WITec software suite for instrument and measurement control, data evaluation and processing

Scientists’ Choice Award Winner

The WITec alpha300 Ri inverted Raman microscope has been awarded the SelectScience Scientists’ Choice Award 2019. The award is given based on the votes of researchers themselves, who are asked to choose their favorite new laboratory technology released in 2018. The WITec alpha300 Ri was voted the Best New Product in the Spectroscopy category and received excellent reviews on SelectScience.net.
