cryoRaman – Cryogenic Raman Imaging Microscope

cryoRaman – Cryogenic Raman imaging microscope by WITec
cryoRaman – Cryogenic Raman imaging microscope by WITec
App Note

cryoRaman brings Raman imaging with unmatched spatial resolution to very low temperature measurements. It was developed for researchers investigating materials that reveal novel properties when cooled to near absolute zero. By combining the performance and modularity of the alpha300 microscope series with advanced cryostat and nanopositioner technology, experiments down to 1.8K in high magnetic fields are made easily accessible and configurable.

Designed to meet existing and emerging challenges, cryoRaman offers a robust standard feature set that can be augmented through an extensive range of options.




Request Pricing

Key Features

cryoRaman WITec attocube web

Application Examples

WSe2 120K web

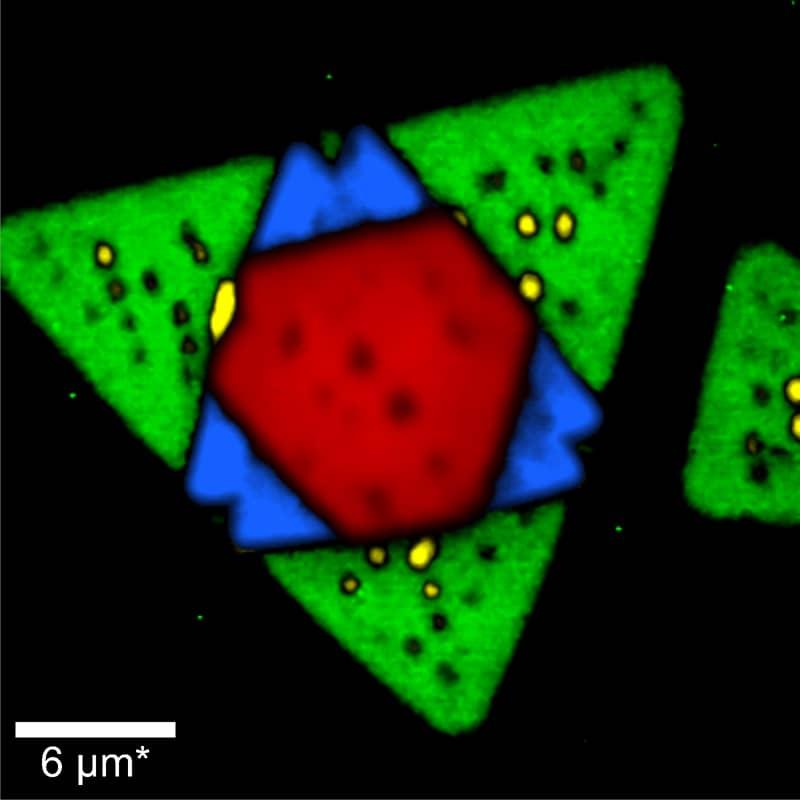

Raman image of tungsten diselenide (WSe2) recorded at 120K. Areas with one (green), two (blue) and three (red) layers were clearly identified from their Raman spectra.
MoS2 WSe2 2K web

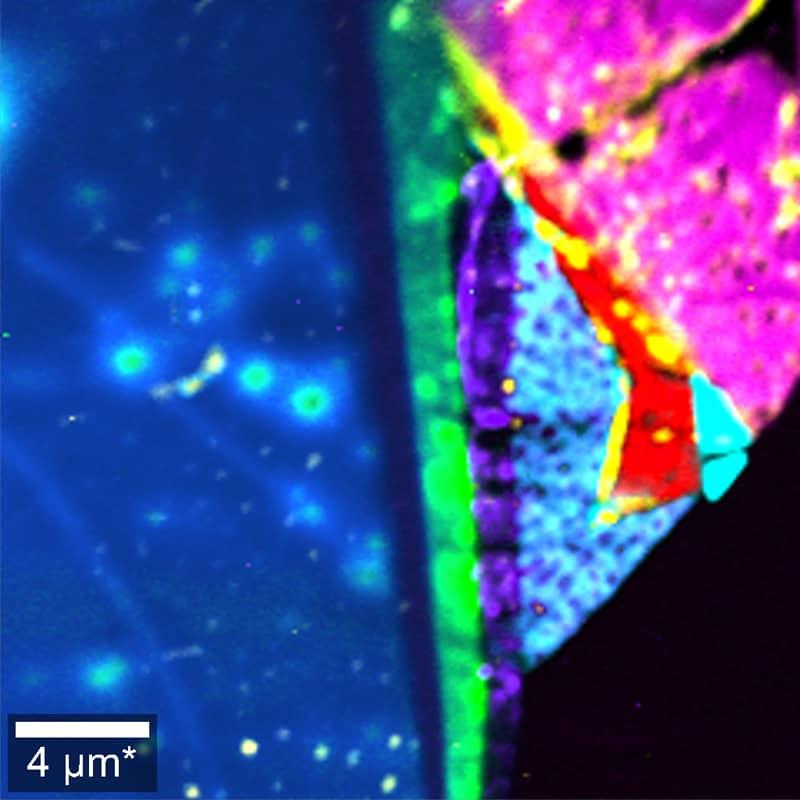

Raman image of a MoS2/WSe2 heterostructure recorded at 2K. The colors represent different layer numbers, compositions and orientations.
MoS2 2K B Pol dep Raman web

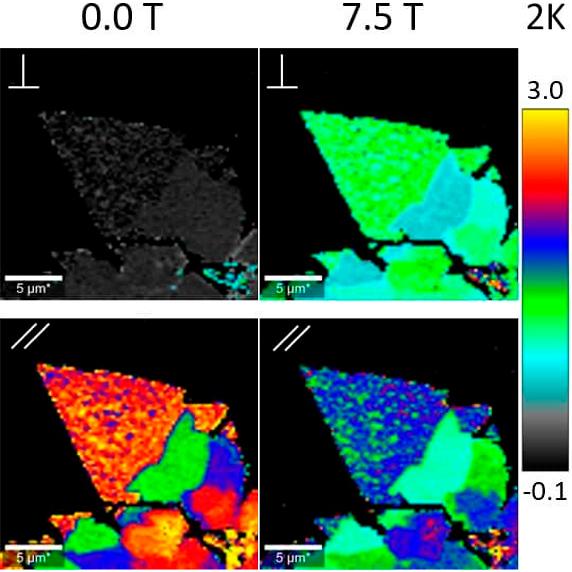

Polarization- and magnetic field-dependent Raman images of single- and multi-layer MoS2 at 2K. The A’1 /E’ intensity ratio is color coded. The polarizer and analyzer were oriented perpendicular or parallel to each other as indicated.
WSe2 cryoRaman T dep PL web
Temperature-dependent shift of photoluminescence (PL) spectra for WSe2. The PL images at different temperatures (300K, 200K, 50K and 2K) are color coded according to the PL peak position. The normalized PL spectra for each temperature are color coded accordingly, with solid and dashed lines representing spectra from the center and the outer edges of the single layer, respectively.

Award-winning Technology

cryoRaman has won a 2022 R&D 100 Award in the Analytical/Test category. This renowned worldwide science and innovation competition is held by R&D World magazine and received entries from a dozen different countries.

Read the official press release

cryoRaman R&D 100 Award
